3050 Series Static Mixers

Google Search Our Web Site:



3050 Series Minimal Headloss Static Mixers are designed for applications where very little head loss is available, or pressure drop is permissable, in the system..

Examples are;

  • retrofitting a mixer into an existing system;
  • where reduced pumping energy is desirable

Our standard Series 2800 wafer-style mixer creates turbulene through pressure diferentials. To further reduce headloss, our Series 3050 Minimal Headloss Mixers do not create turbulenece through pressure differentials but by creating vortices..

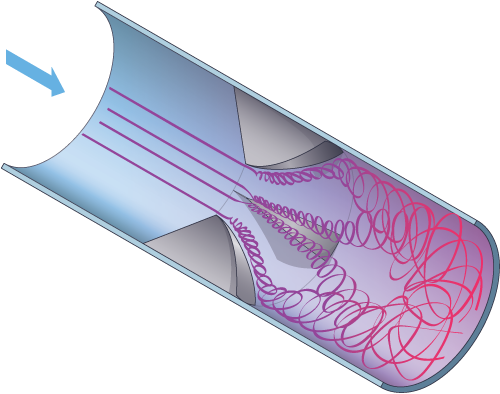

The design of the fins in the 3050 Series Minimal Headloss Static Mixer has been insipired by studying the vortex formation at the wing tips of F18 fighter jets. The fins in the mixer are shaped to generate vortices that grow and intersect to provide turbulence with minimal very low headloss.

These 3050 Series Minimal Headloss Static Mixers are built into a piping spool to match your site piping system, and are available in one, two or three stage configurations as follows:

  • Single stage Series 3050 Static Mixer. This has one row of four "fins" to create the mixing at the lowest headloss static mixer. k-Value is 0.58 and the CoV is .057.
  • Double stage Series 3050 Static Mixer. This has two rows of four "fins" to crreate more mixing with a little more headloss than the single stage static mixer. k-Value is 1.13 and the CoV is .026.
  • Triple stage Series 3050 Static Mixer. This has three rows of four "fins" to create more mixing with a little more headloss than both the single and double stage static mixers. k-Value is 1.64 and the CoV is .014.

The advantages are:

  • Mixes well with minimal, or very low, headloss
  • Choice of three levels of mixing with three levels of headloss by choosing number of rows of four "fins" - single, double, or triple stage
  • High performance mixing - CoV of .057 or better
  • Published headloss - kV of 1.64 or better
  • Dramatically improves mixing when available headloss is very low
  • Choice of flange connections
  • Ports to connect to chemical injection assemblies are built in to the mixer. Unless otherwise specified
  • Short laying length - just one diameter per stage
  • Resistant to fouling and ragging
  • Long service life
  • No maintenance
  • Energy saving when compared with other static mixers
  • Sustainable - reduced maintenance or energy costs
  • Easy to clean
  • CFD reports available
  • White Papers available
Series Brochure Description Diagram
Series 3050 For mixing where there is very little headloss available or pressure drop that is permissible. 3050 Series

Westfall Static Mixers have predictable headloss co-efficients.

Click Here for a chart that indicates the head loss coeffient of each model.

Capabilities

H2O Rx is the exclusive Australian licensee and distributor of the Westfall Manufacturing range of static mixers manufactured in both Australia and USA>

H2O Rx and Westfall Manufacturing design an build static mixers to meet your application's needs:

Size Range: DN15 to DN3000

Materials Include:

  • PVC
  • FRP
  • 316 stainless steel
  • Carbon steel
  • Titanium
  • Hastelloy C-276
  • If more protection is needed an Epoxy or Teflon® coating can be provided.

Applications:

  • All fluids - liquids and gases
  • Municipal and industrial water treatment
  • Potable water
  • Waste water
  • Irrigation
  • Chlorination / dechlorination
  • Chemical blending
  • Dissolving gases
  • Contact chambers
  • Flocculent blending
  • Anerobic digestion
  • Dewatering
  • pH control
  • Product blending

Additional Resources

Description

Get it from the Clouds

CFD Report COMPUTATIONAL FLOW MODEL OF
WESTFALL'S 3050 STAGED MIXER
3050 Series Low Head Loss Mixer animation
Mass Fraction Simulation
CFD Analysis showing at 3050 Single Stage Mixer with a single injection point in operation
CFD Analysis showing at 3050 Single Stage Mixer with two injection points in operation
CFD Analysis showing at 3050 Two Stage Mixer with two injection points in operation
CFD Analysis showing at 3050 Three Stage Mixer with two injection points in operation
